DSD-610
Drawing
※ The above products and specifications can be changed to improve product quality.
Specification
| MODEL | DSD-610 |
|---|---|
| Equipment Specifications | 2,250(W)*5,200(L)*100(H)/300(H) |
| Equipment Weight | 2,000kg |
| Appicable Vehicle | Large vehicle (25ton) |
| Drying Time | 40~60sec (Adjustable) |
| Processing Capacity | Max 600vehicles / day(8 hours/day) |
| Electric Power Types | 220V/380V 3-phase, 60Hz |
| Power Consumption | 15Kw |
| Operation Method | Automatic dry by close S/W detection |
| Wind Speed | 20m/s |
Application of Wheel Dryer
- Urban civil construction sites of high civil complaints
- Busy roads exposed to traffic pollutants and where water leaks in the winter
- Removing residue with high-pressure air
- Full automatic operation by wheel detection
- Busy roads exposed to traffic pollutants and where water leaks in the winter
- Removing residue with high-pressure air
- Full automatic operation by wheel detection
Features of Wheel Dryer
1. A system dries wheels by blowing air to the left, right and bottom of the vehicle to help the effect of irregularity for the low part of a vehicle.
2. High-pressure air is used to effectively remove foreign matter left on the wheel.

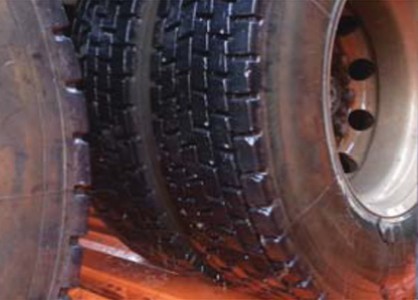

3. Washing water on the wheel can be effectively dried.
4. The wheel dryer prevents road contamination, accident and frozen road in the winter that may be caused by a vehicle dripping polluted water after wheel wash.
5. It suppresses the generation of secondary dust and helps prevent environmental pollution caused by road pollution and fine dust
2. High-pressure air is used to effectively remove foreign matter left on the wheel.
3. Washing water on the wheel can be effectively dried.
4. The wheel dryer prevents road contamination, accident and frozen road in the winter that may be caused by a vehicle dripping polluted water after wheel wash.
5. It suppresses the generation of secondary dust and helps prevent environmental pollution caused by road pollution and fine dust
