GRATING Low-Floor Type System

GRATING Low-floor Type system

Grating Low Floor Type Water Portable Automatic Tire Washer

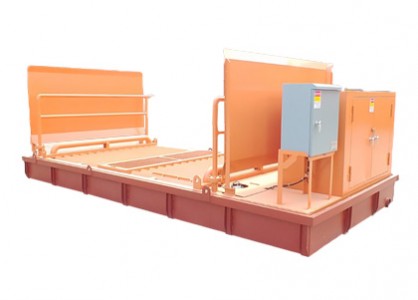

DTW-312(Built-in Generator)
Drawing
※ The above products and specifications can be changed to improve product quality.
Specification
MODEL DTW-312(Built-in generator)
Equipment Specifications 2,200(W) * 4,800(L) * 350(H)
Equipment Weight 3,000kg
Appicable Vehicle 25Ton, Large Vehicle
Washing Time 20~40sec
Processing Capacity Max. 720~1,400 Vehicles/Day (8 hours/day)
Electric Power Types 220V single-phase / self-generator combined
Operation Method Automatic tire washing system by proximity S/W detection
Power Consumption 3Kw Water Pressure 3~4kg/㎠
Fuel in Use Gasoline Water storage
capacity
4ton
Application & Advantages
- Easy installation
- A difficult site for electric supply
- Affordable installation cost
- Seperated type of iron box (easy to clean)
- Full automatic operation by wheel detection
- Road construction, embankment construction, railway construction, reservoir construction, etc.
