GRATING Low-Floor Type System

GRATING Low-floor Type system

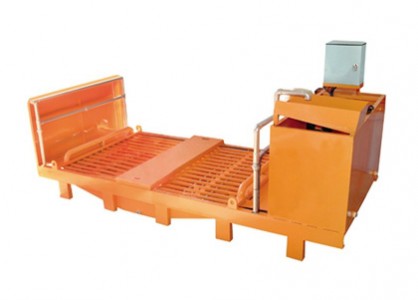

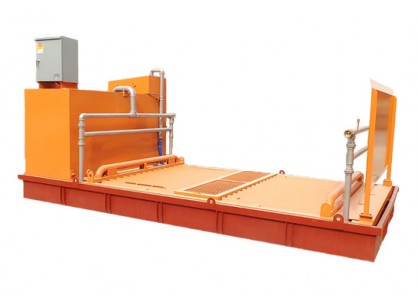

Grating Low Floor Type Water Portable Automatic Tire Washer
DTW-310
Drawing
※ The above products and specifications can be changed to improve product quality.
Specification
MODEL DTW-310
Equipment Specifications 2,200(W) * 4,800(L) * 350(H)
Equipment Weight 3,000kg
Appicable Vehicle 25Ton, Large Vehicle
Washing Time 20~40sec
Processing Capacity Max, 720~1,400 vehicles/day(8 hours/day)
Electric Power Types 220V / 380V 3-phase, 220V single phase, 60Hz
Power Consumption 11.75Kw
Operation Method Automatic tire washing system by proximity S/W detection
Water Pressure 3~4kg/㎠ Water storage
capacity
4Ton
Advantages
1. It is convenient to move.
2. Designed so that the soil is collected in the middle, it is easy to clean with the middle safety footrest.
3. Seperated type of iron box (easy to clean)
4. Easy installation · affordable installation cost
